Enviro500
The Enviro500 is the world’s best-selling three-axle double deck bus.
Accommodating over 80 seated passengers in supreme comfort, the Alexander Dennis Enviro500 for the United States and Canada is the ideal solution for carrying large numbers of riders on transit, commuter or tourist routes while occupying a smaller roadspace.

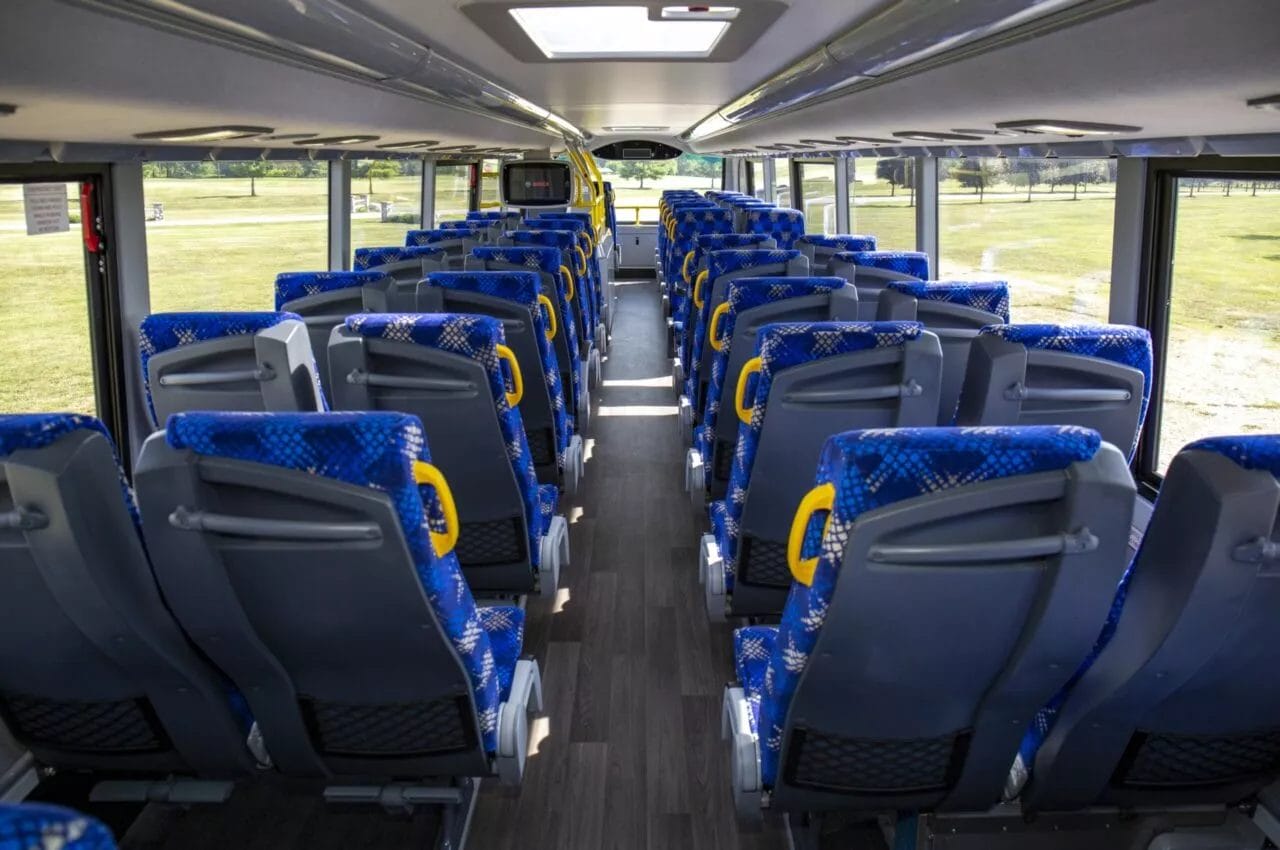

Access is unbeatable with wide opening doors and an obstruction-free, flat floor interior which provides two wheelchair spaces. Reaching the upper deck is via a wide and well-lit staircase with appropriately positioned handrails that maximize safety.
Download specification
Key figures
Buy America
compliant
Altoona
tested
Features and benefits
- 13’6” height allows it to operate in virtually every part of the USA and Canada
- Supported by Alexander Dennis and NFI Parts
- One or two staircases to upper deck
- 2 ADA-compliant wheelchair positions
Dimensions
| Length | 42’5” (12.93m) over body |
| Width | 8’3” (2.52m) |
| Height | 13’6” (4.12m) |
| Wheelbase | 21’1” (6.43m) + 4’11” (1.5m) |
| Overhang | 8’2” (2.48m) front / 8’4” (2.52m) rear |
| Turning radius | 40’1” (12.23m) |
Specifications
| Standard | Option | |
|---|---|---|
| Passenger capacity | Up to 86 seats |
Wide range of seating layouts and specification options |
| Headroom | 6’6” (1.98m) lower deck / 5’7” (1.70m) upper deck |
|
| Accessibility | 2 ADA-compliant wheelchair positions accessed via powered ramp at front door |
|
| Climate system | Thermo King air-conditioning and Spheros auxiliary heating |
|
| Engine | Cummins L9 (6 cylinder, 8.9 litre, 283kW (380hp), 1250 lb∙ft (1696 Nm), EPA2024) |
|
| Transmission | Allison B500R automatic transmission with integral retarder |
|
| Axles | ZF RL75A front axle / ZF AV133 drive axle / ZF RL75A steered tag axle |
|
| Tires | 305/70R22.5 |
| Standard | Option | |
|---|---|---|
| Passenger capacity | Up to 86 seats |
Wide range of seating layouts and specification options |
| Headroom | 6’6” (1.98m) lower deck / 5’7” (1.70m) upper deck |
|
| Accessibility | 2 ADA-compliant wheelchair positions accessed via powered ramp at front door |
|
| Climate system | Thermo King air-conditioning and Spheros auxiliary heating |
|
| Engine | Cummins L9 (6 cylinder, 8.9 litre, 283kW (380hp), 1250 lb∙ft (1696 Nm), EPA2024) |
|
| Transmission | Allison B500R automatic transmission with integral retarder |
|
| Axles | ZF RL75A front axle / ZF AV133 drive axle / ZF RL75A steered tag axle |
|
| Tires | 305/70R22.5 |
