The Enviro500 provides efficient, comfortable, high passenger capacity transport on a compact road footprint.
Alexander Dennis has used its global expertise to adapt the Enviro500 to the requirements of European operators, while maintaining benefits from common components and design structures shared with a fleet of over 18,000 double deck buses around the world.
Enviro500 have been operating in Switzerland for several years, while Berliner Verkehrsbetriebe’s fleet of 200 double deckers is now a familiar sight on the boulevards of the German capital.
Download specification
Key figures
13.8m
vehicle length
112
maximum passenger capacity
Features and benefits
- Whole-vehicle AD24 aftermarket support
- Three doors + staircases at front and rear for easy passenger flows throughout the vehicle

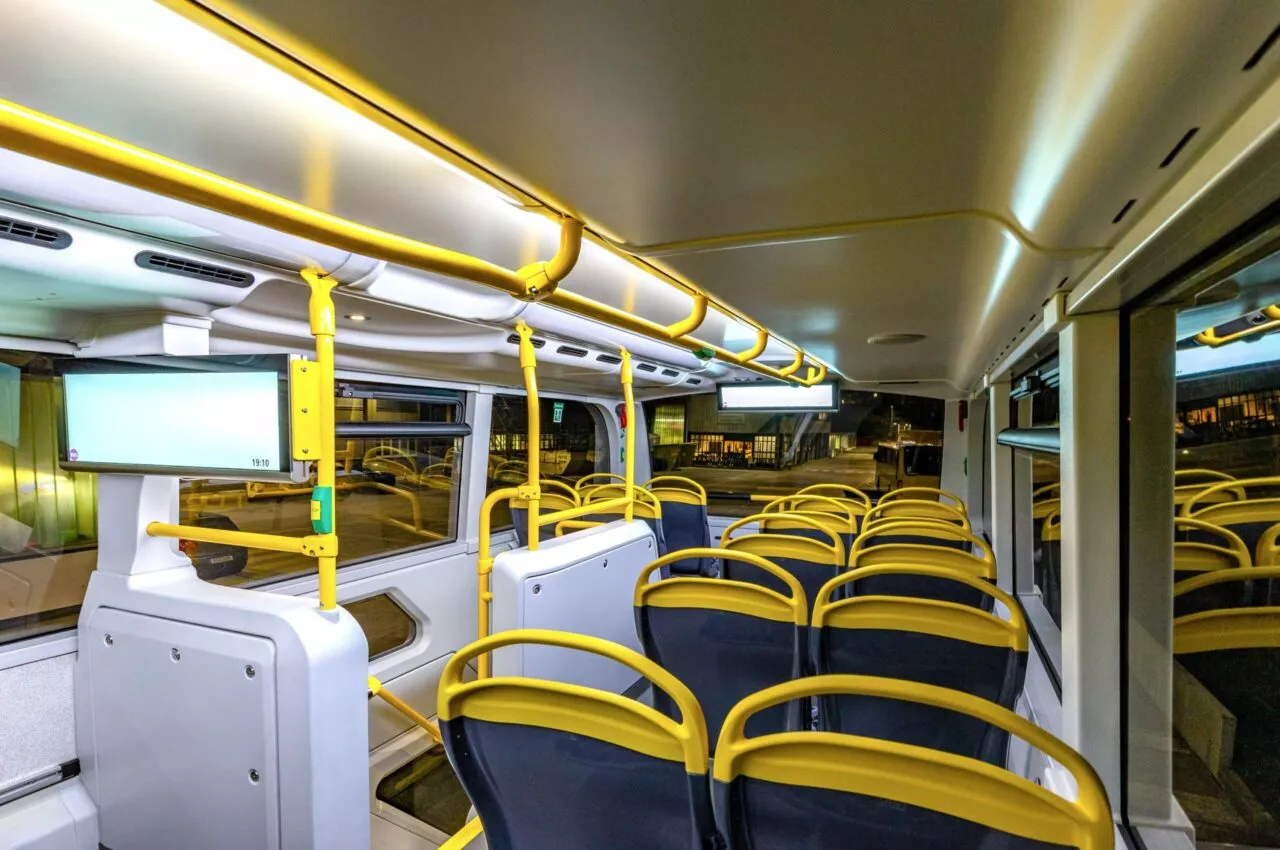

- LED interior lighting adjusts colour tone to changes in exterior temperature to assist thermal comfort
Dimensions
| Length | 13.8m |
| Width | 2.55m |
| Height | 4.06m |
| Wheelbase | 5.93m + 1.5m |
| Overhang | 3.0m front / 3.37m rear |
| Turning circle | 23.1m |
Specifications
| Standard | Option | |
|---|---|---|
| Passenger capacity | 80 fixed seats (25 lower deck, 55 upper deck) and 3 tip-ups / 32 standees / | Choice of interior layouts and seating options available |
| Headroom | 1.94m lower deck / 1.69m upper deck | |
| Accessibility | 2 wheelchair spaces accessed via manual ramp at centre door | |
| Climate system | Thermo King TDD-S air-conditioning and Spheros auxiliary heating | |
| Engine | Mercedes-Benz OM936 (6 cylinder, 7.7 litre, 260kW (354PS), Euro VI) | |
| Transmission | Voith DIWA.6 | |
| Axles | ZF RL75A front axle / ZF AV133 drive axle / ZF RL75A tag axle, actively steered | |
| Tyres | 275/70R22.5 |
