The Enviro500 provides efficient, comfortable, high passenger capacity transport on a compact road footprint.

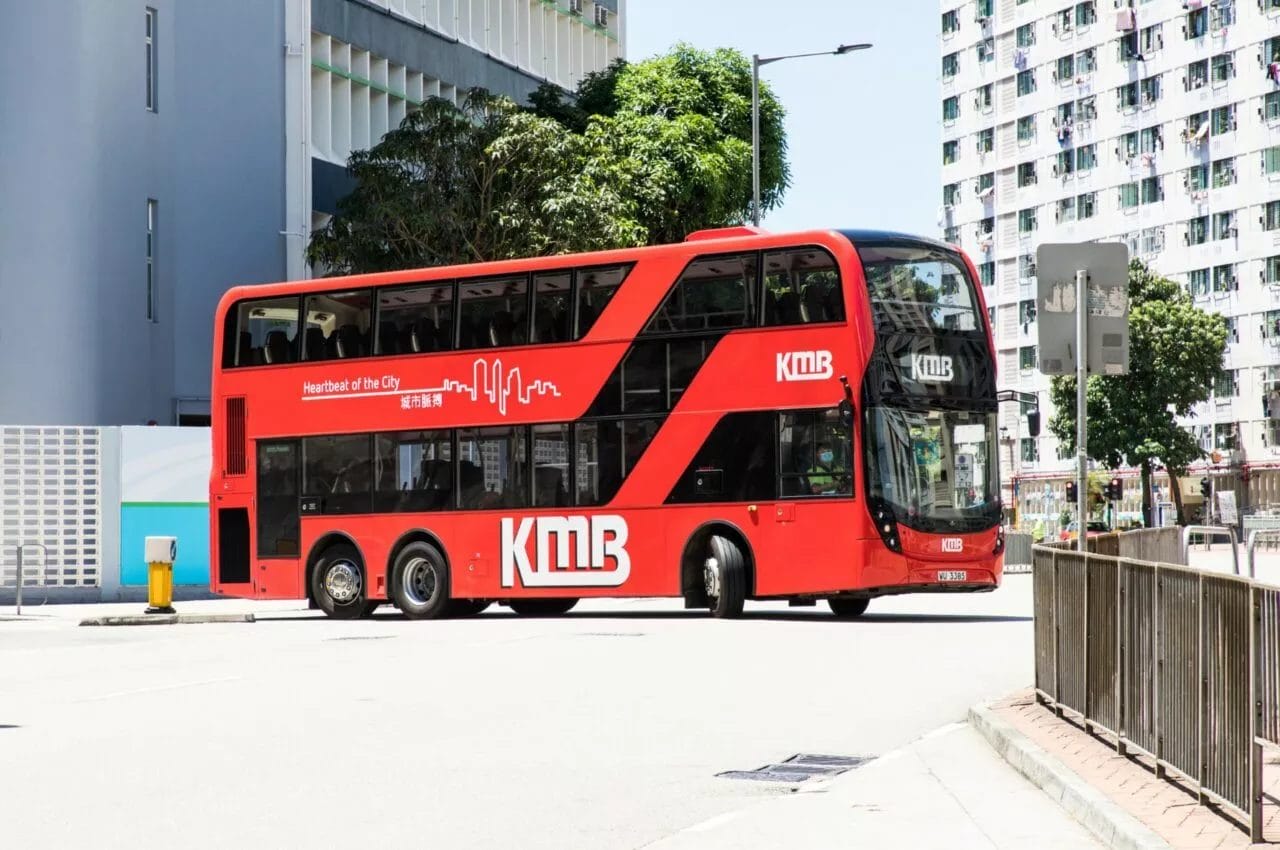

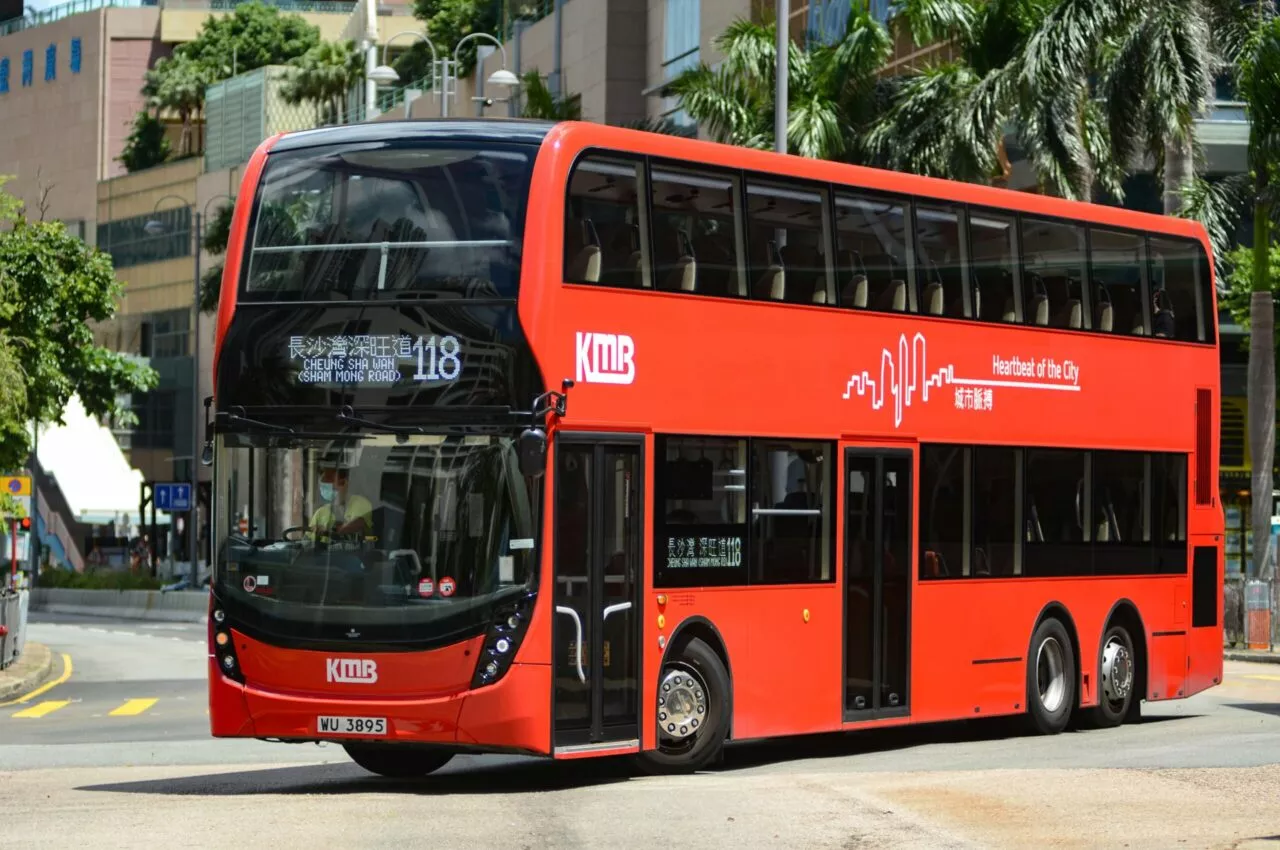

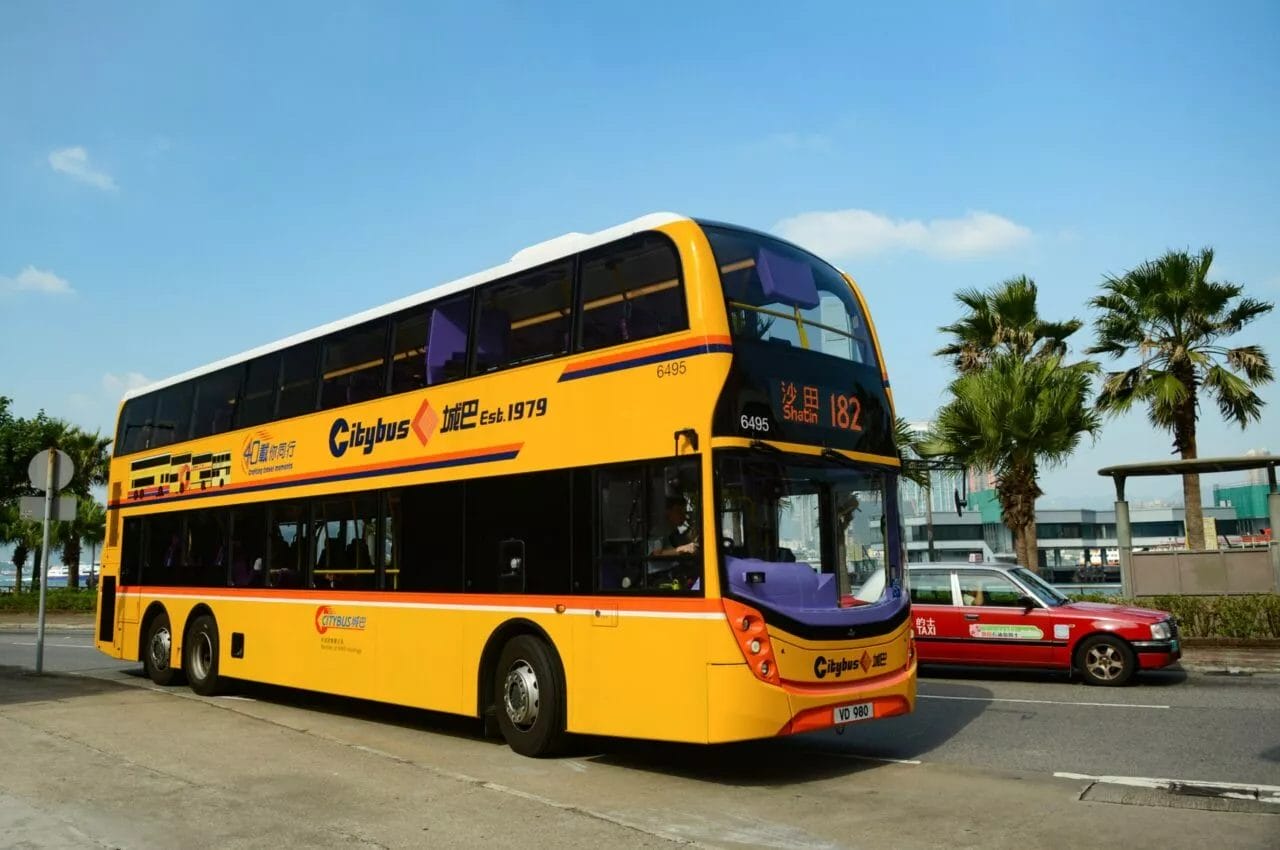

It’s the backbone of the Hong Kong bus fleet with over 4,000 Enviro500 built for the territory. They are designed to give a comfortable journey experience to high numbers of passengers while mastering challenging topography.

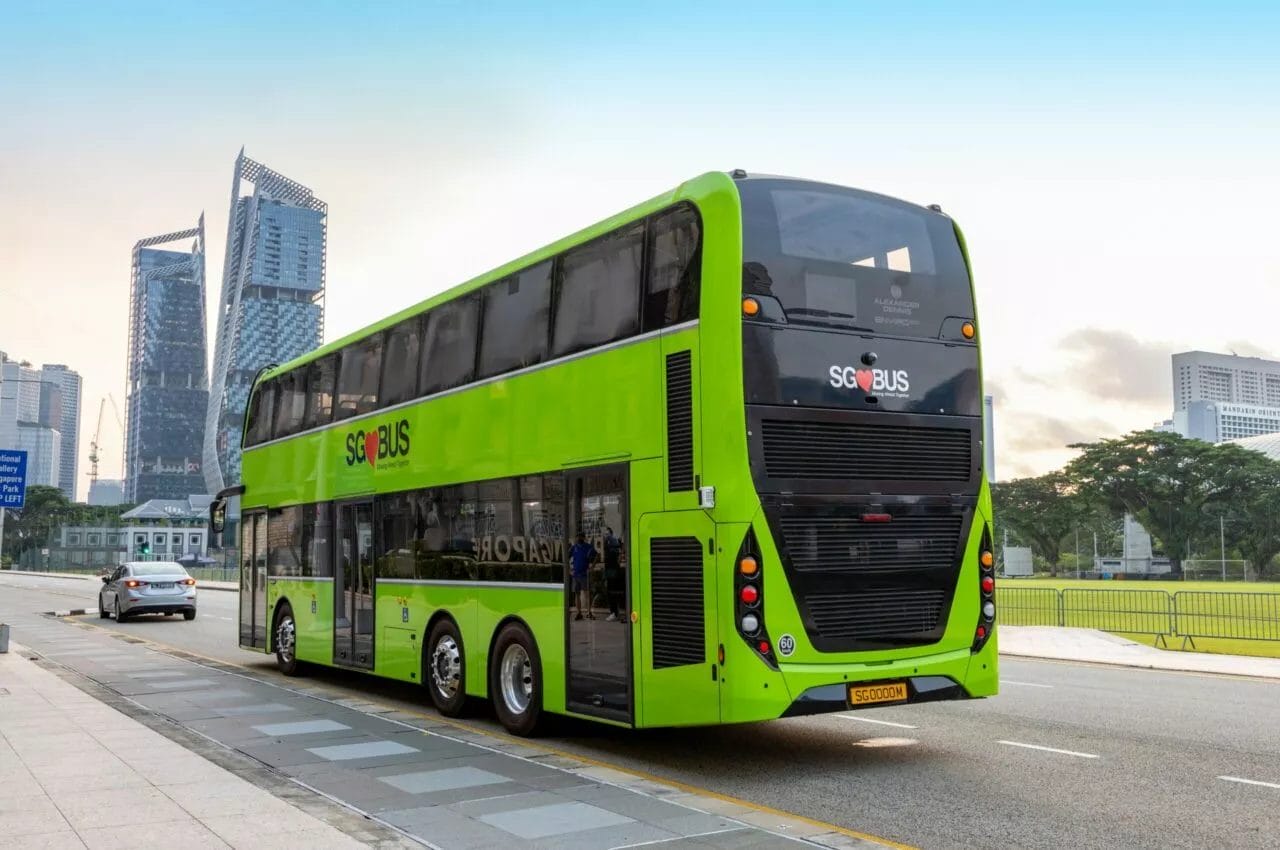

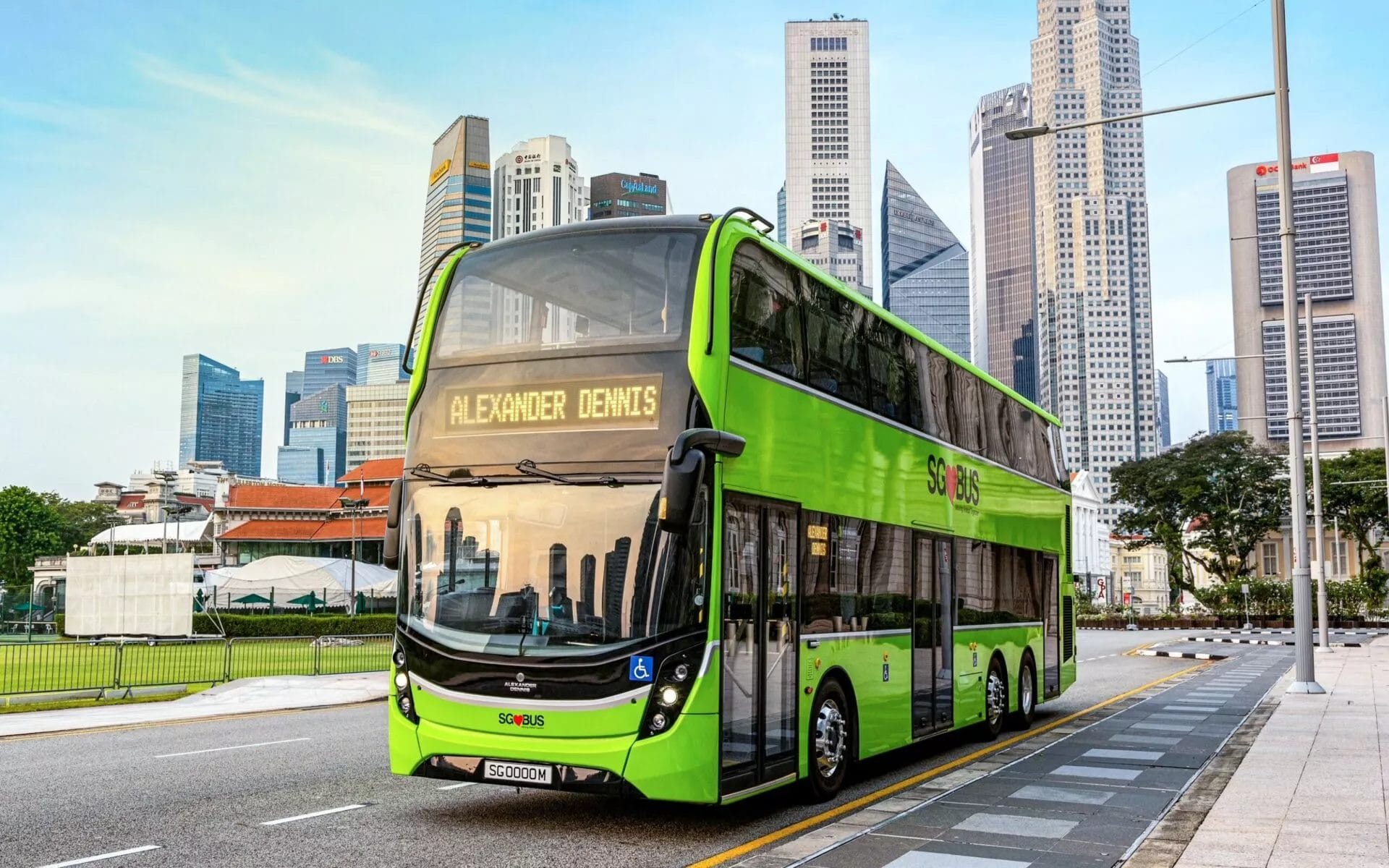

With three doors and staircases at the front and rear of the bus, the Enviro500 for Singapore allows passengers to move around the vehicle easily and safely. A wide, step-free passage runs the length of the lower saloon to the rear exit door, and the second staircase descends directly towards the door to avoid conflicting passenger movements.

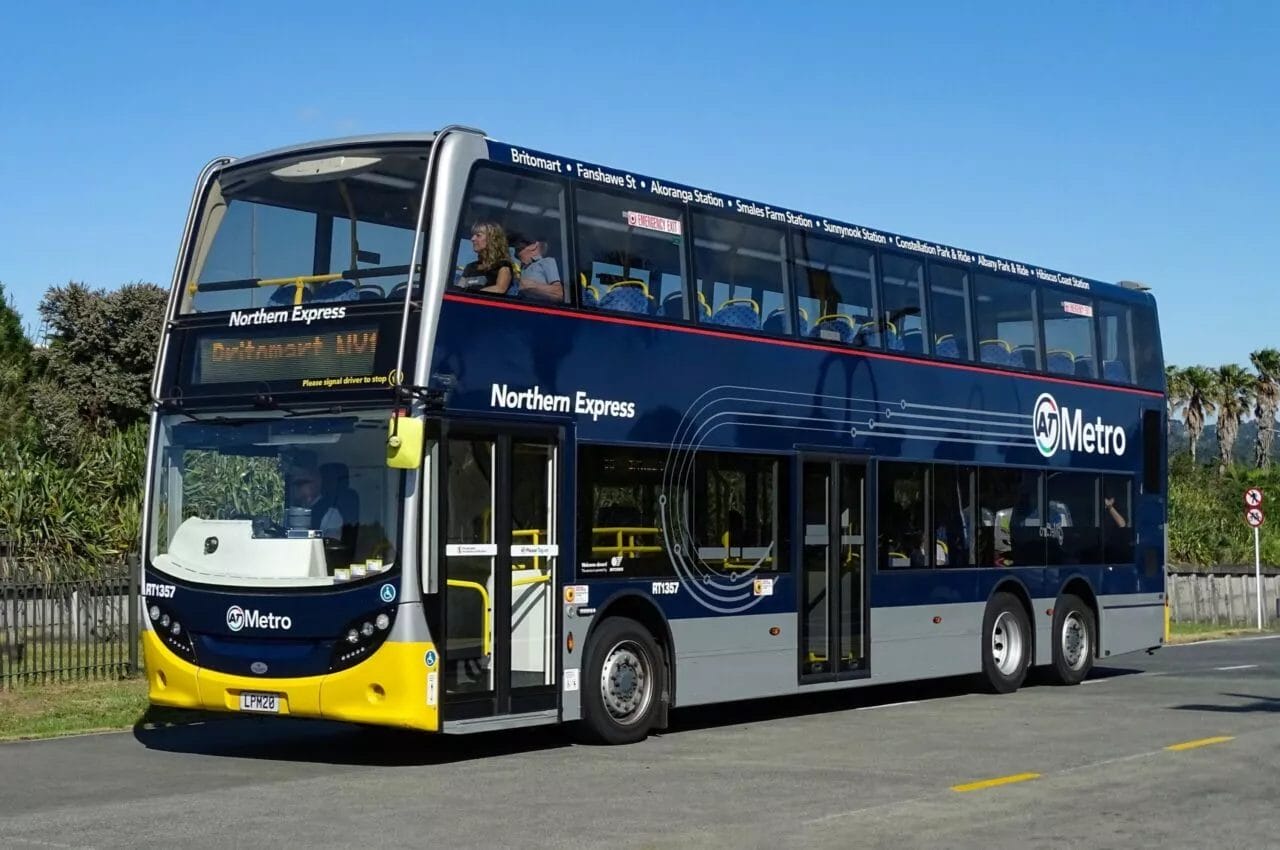

It meets New Zealand’s requirements for urban buses and is available with a wide range of specification options that allow it to be tailored to the requirements of urban bus services, commuter expresses, private hire and sightseeing operations.
Download specification
Key figures
92
maximum number of seats
142
maximum passenger capacity
Features and benefits
- Whole-vehicle AD24 aftermarket support
- Tailored to operating requirements in different territories with choice of vehicle lengths and heights
- Optional roof-mounted solar panels to reduce auxiliary energy consumption
Dimensions
| Length | 11.3m, 12.0m, 12.5m or 12.8m |
| Width | 2.50m or 2.55m |
| Height | 4.2m, 4.3m or 4.4m |
| Wheelbase | subject to configuration |
| Overhang | subject to configuration |
| Turning radius | subject to configuration |
Specifications
| Standard | Option | |
|---|---|---|
| Passenger capacity | Up to 92 seats / up to 142 passengers total capacity (Hong Kong) | 69 seats / 132 passengers total capacity (Singapore) or up to 91 seats / 101 passengers total capacity (New Zealand) |
| Headroom | 2.05m lower deck / 1.75m upper deck (Hong Kong) | 2.03m lower deck / 1.81m upper deck (Singapore) or 1.98m lower deck / 1.74m upper deck (New Zealand) |

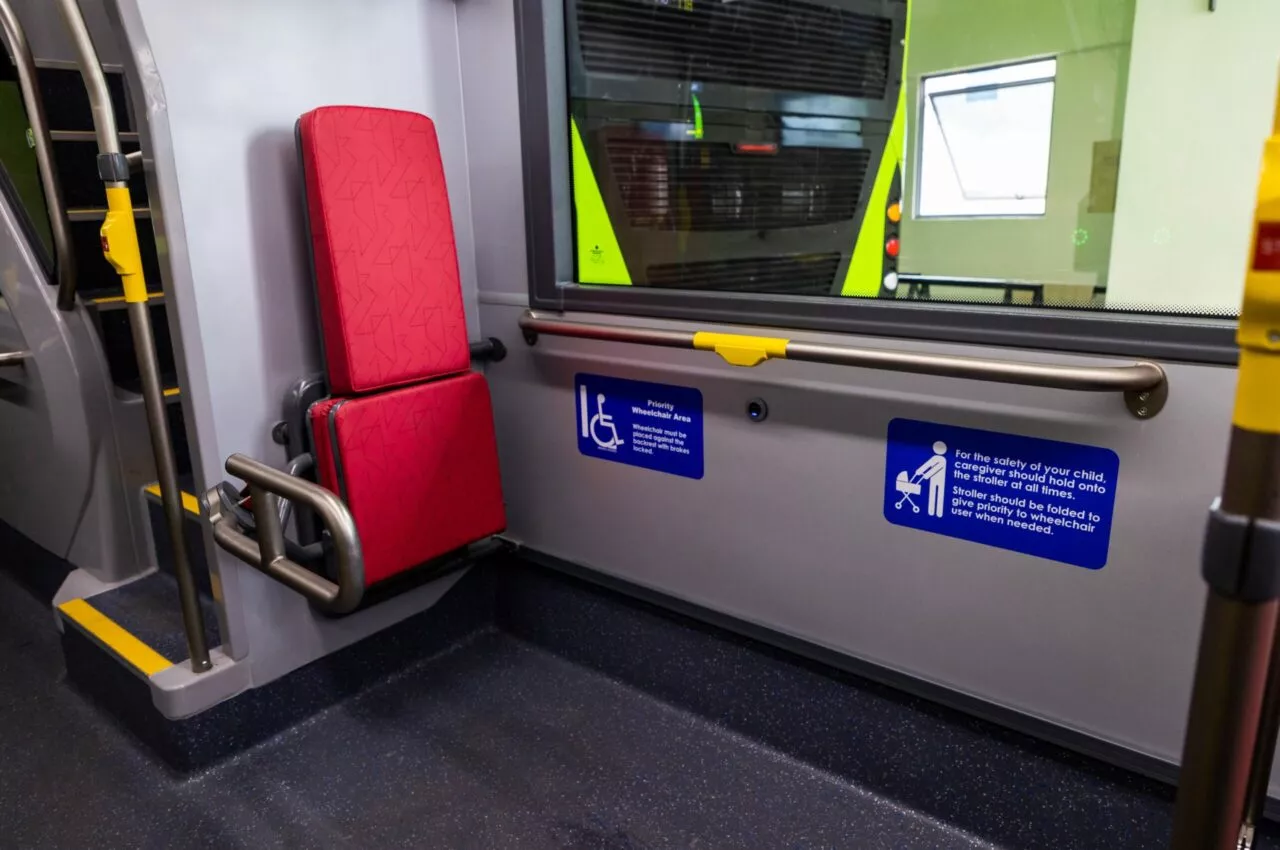

| Accessibility | 1 or 2 wheelchair spaces accessed via manual ramp at front or centre door | |
| Climate system | Full DENSO air-conditioning (Hong Kong and Singapore) | Full Thermo King air-conditioning (New Zealand) |
| Engine | Cummins L9 (6 cylinder, 8.9 litre, 254kW (340PS), Euro VI; Hong Kong and New Zealand) | Mercedes-Benz OM936 (6 cylinder, 7.7 litre, 260kW (354PS), Euro VI; Singapore) |
| Transmission | Voith DIWA | ZF EcoLife |
| Axles | ZF RL75A front axle / ZF AV133 drive axle / ZF RL75A fixed tag axle | Steered tag axle |
| Tyres | 305/70R22.5 (Hong Kong and Singapore) | 355/50R22.5 (front and tag axle) / 275/70R22.5 (drive axle) (New Zealand) |
